TFMF Cone mountings

This type of mounting is used whenever good vertical insulation together with good limitation of horizontal forces is needed.

The shock mount is assembled with a bolt inserted in the central bush and by holes in the outer bush flange.

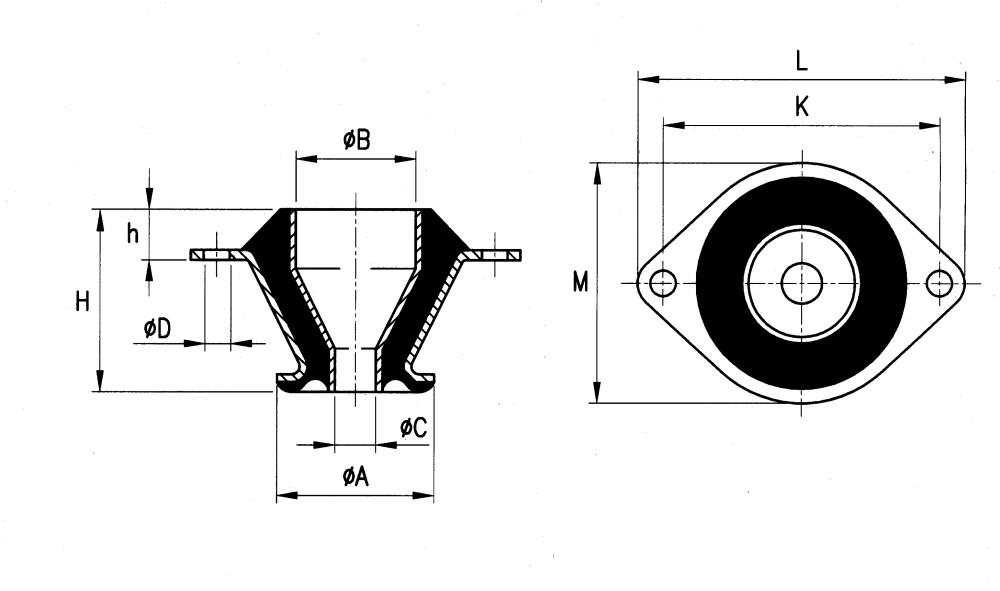

Type	Figure	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	I mm	Max.load from/to (kg)

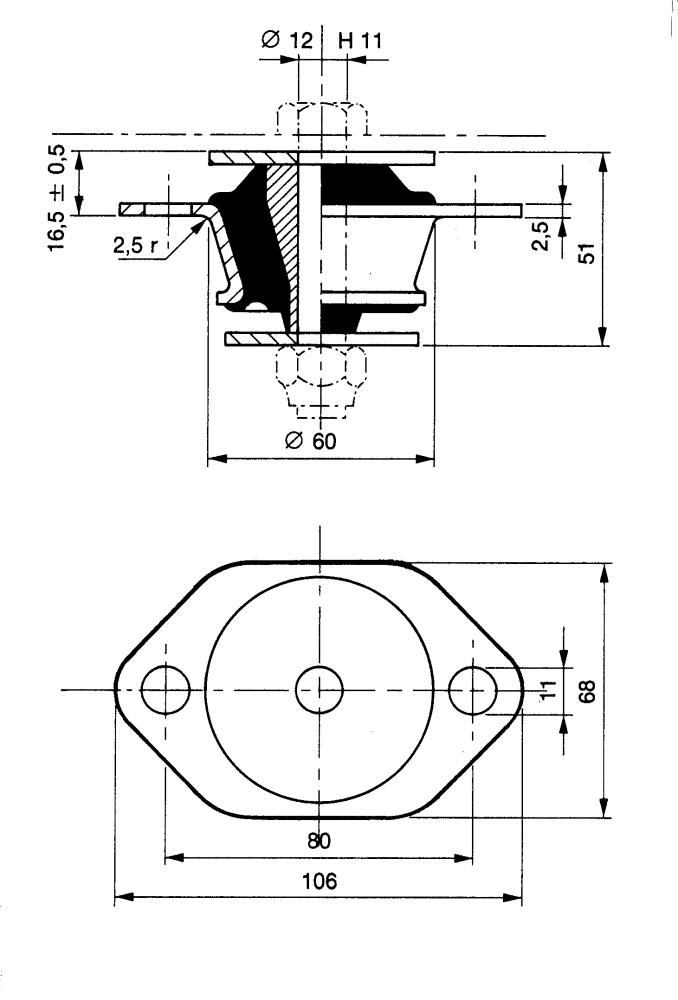

TFMF 7933	1	80	106	68	11	51	Ø12	Ø60	16,5	2,5	113 - 216

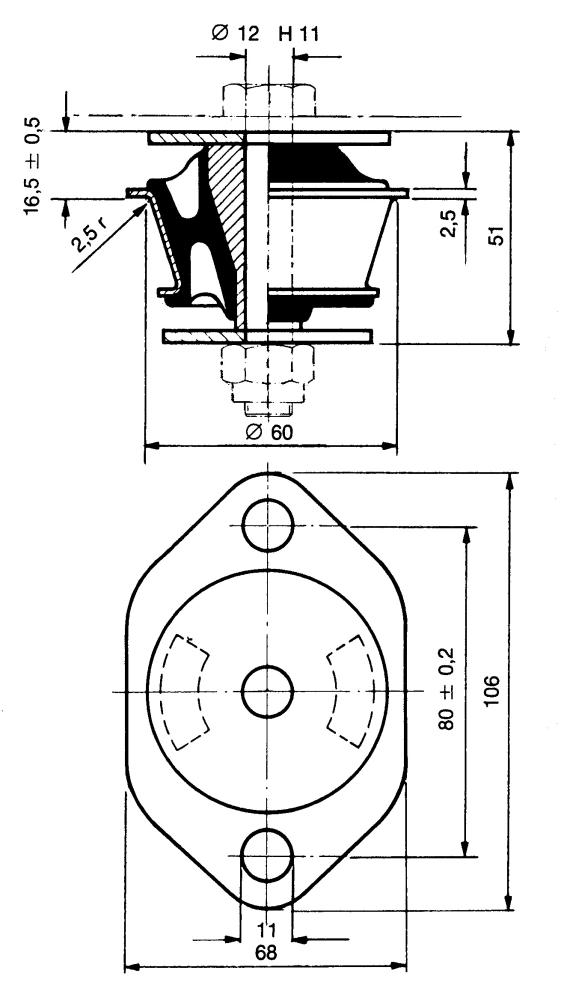

TFMF 7944 (A)	1	80	106	68	11	51	Ø12	Ø60	16,5	2,5	88 - 168

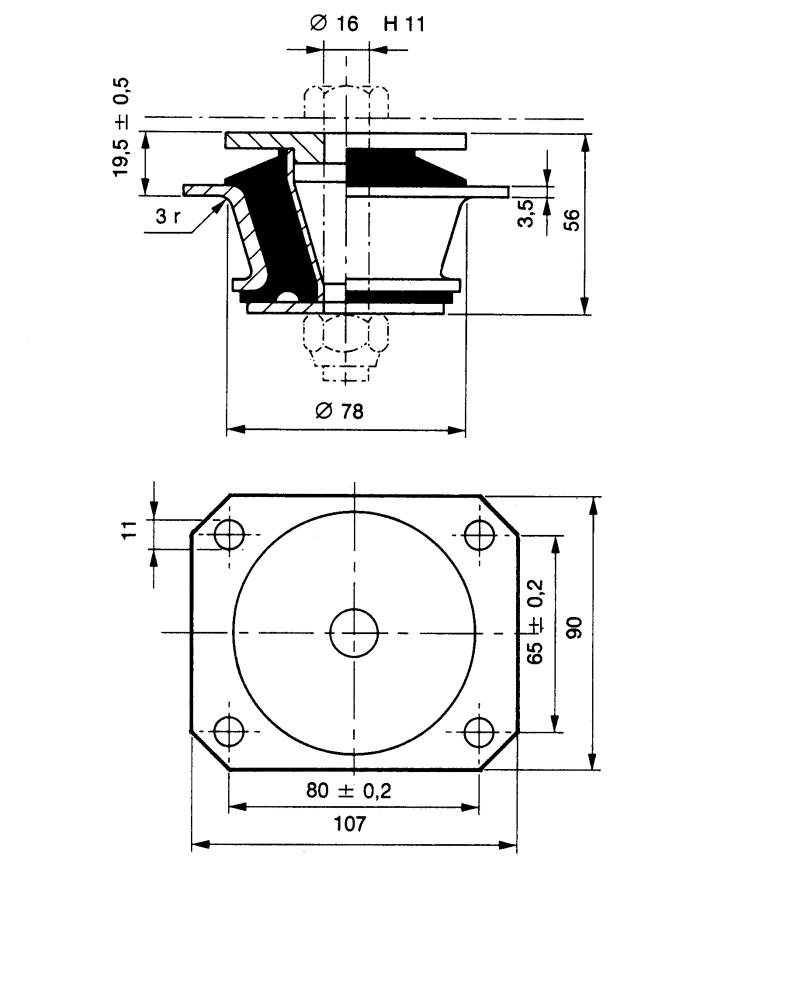

TFMF 7955	2	80x65	107	90	11	56	Ø16	Ø78	19,5	3,5	206 - 412

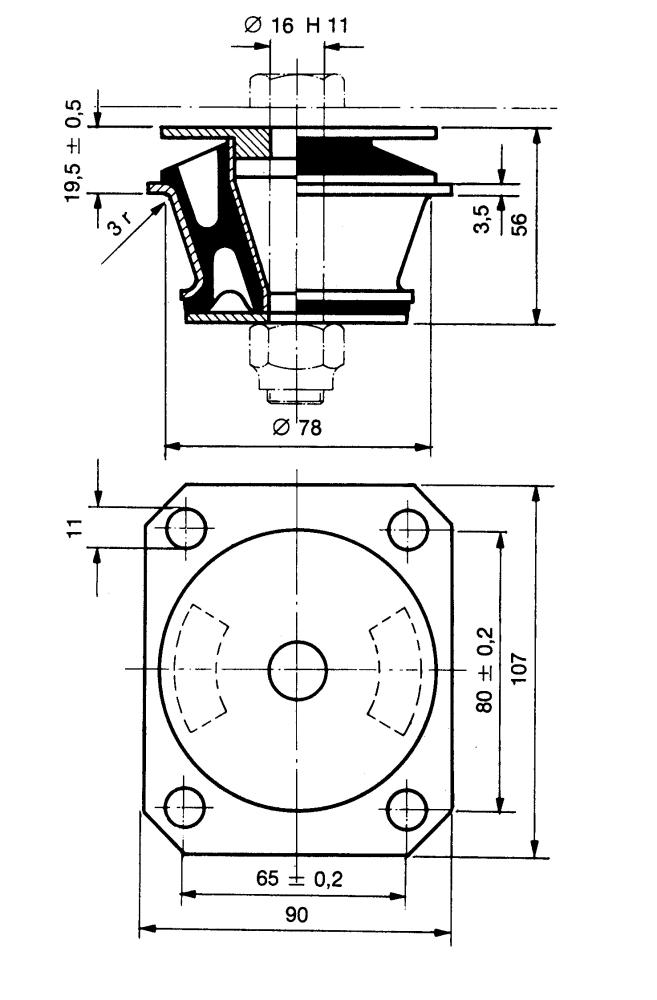

TFMF 7966 (A)	2	80x65	107	90	11	56	Ø16	Ø78	19,5	3,5	147 - 294

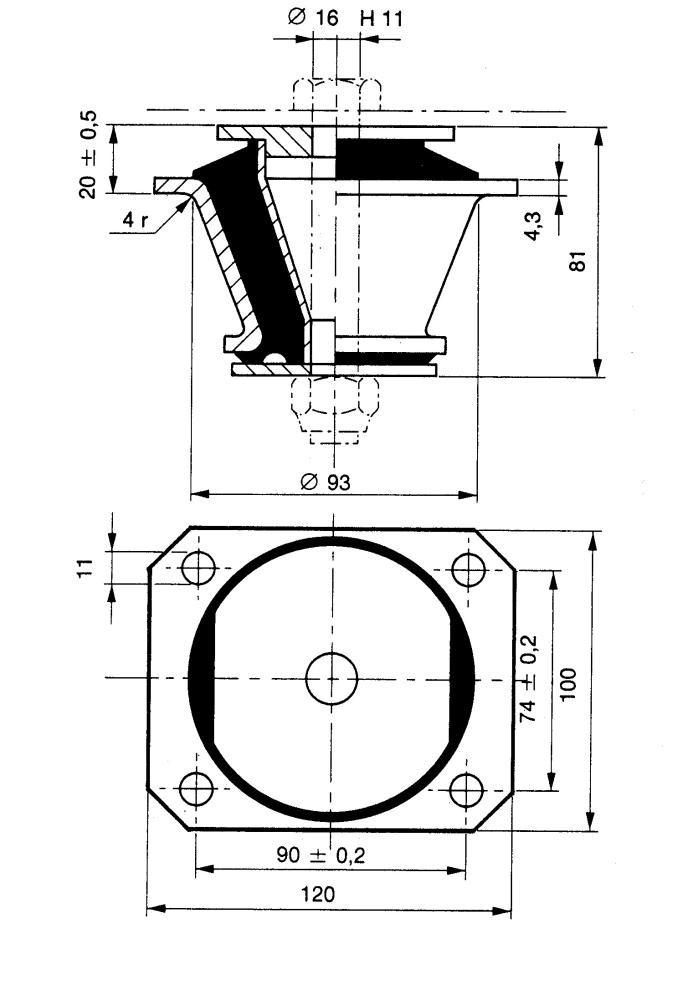

TFMF 7977	2	90x74	120	100	11	81	Ø16	Ø93	20	4,3	471 - 932

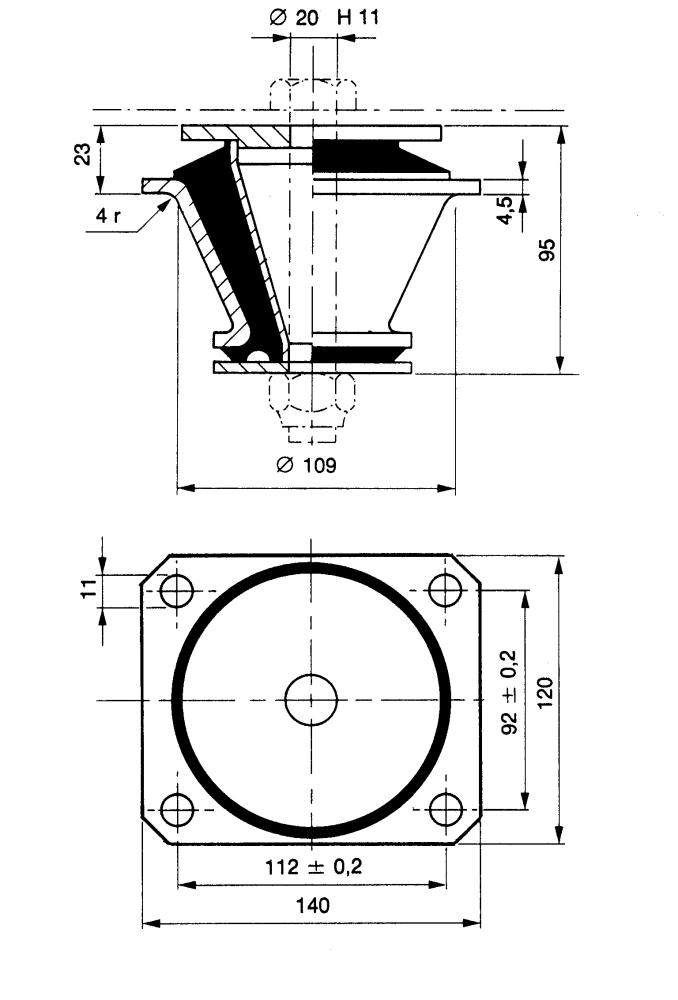

TFMF 7988	2	112x92	140	120	11	95	Ø20	Ø109	23	4,5	687 - 1668

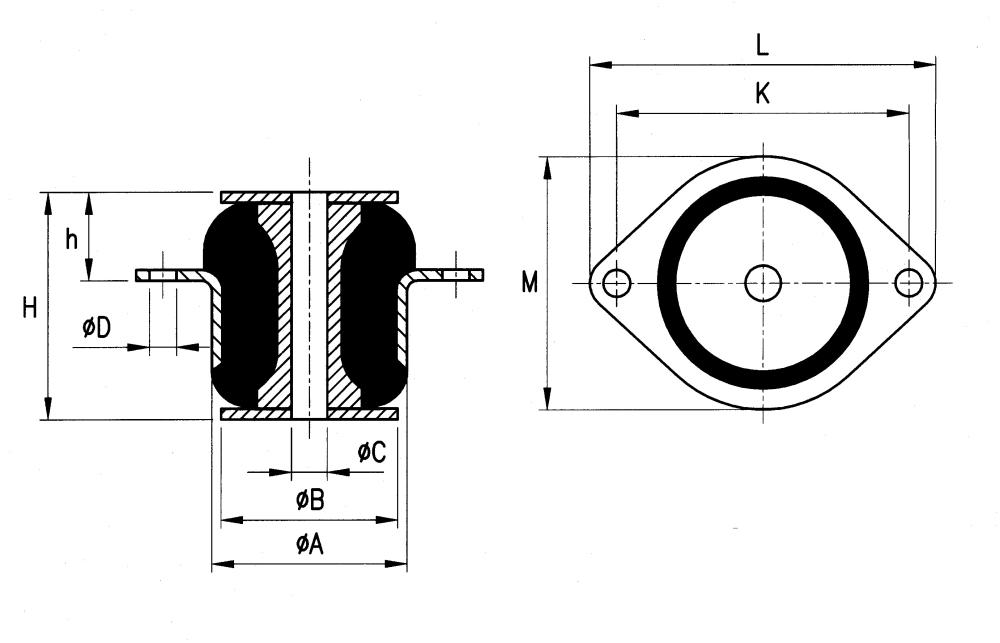

Type	Figure	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	I mm	Max. static. load (kg)
TFMF 5603	1	87	70	52	20	30,5	10	49	9	64	110 (60°Sh.)
TFMF 2486M*	1	120	98	55	26	44	12,5	60	10,5	80	150 (60°Sh.)
TFMF 2486H	1	120	98	50	20	52	14	60	10,5	80	200 (70°Sh.)
TFMF 4085/1	1	120	96	52	32	44	12,5	60	10,5	80	220 (70°Sh.)
TFMF 4085	1	124	96	52	27	44	12,5	60	10,5	85	180 (70°Sh.)
TFMF 5010	1	128	100	65	25	55	16,5	71	10,5	95	150-300 (45-70°Sh.)
TFMF 5010/1*	1	129	106	63	26	53	16,5	71	10,5	95	150-300 (45-70°Sh.)
TFMF4337	2	146	120	40	28	45	25,0	70	13,0	100	300 (70°Sh.)

(A) Asolato

* vulcanized
