Clamps and Mounting Bands

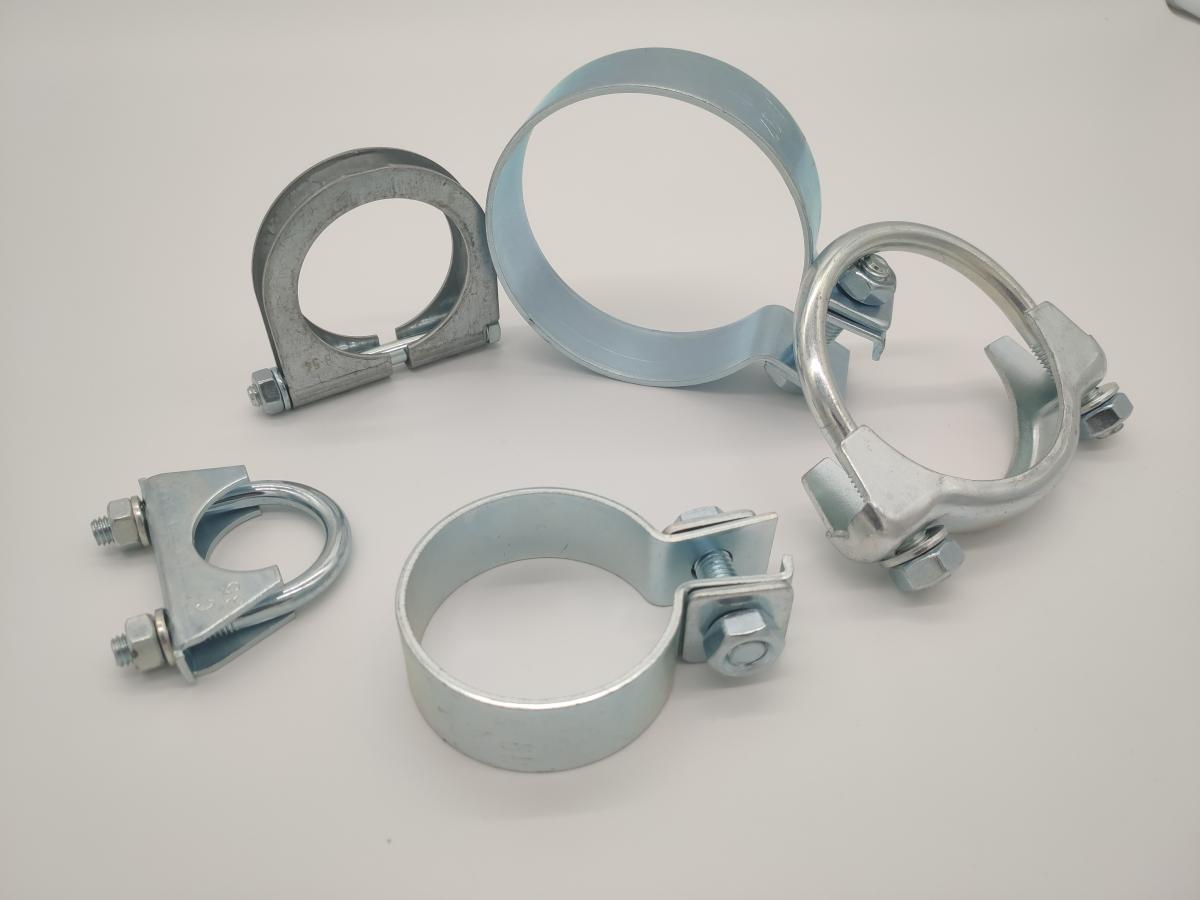

MAR Exhaust Pipe Clamps

Clamps and Mounting Bands
MAR Exhaust Pipe Clamps
MAR Exhaust Pipe Clamps
MAR Exhaust Pipe Clamps
MAR Exhaust Pipe Clamps
MAR Exhaust Pipe Clamps
MAR Exhaust Pipe Clamps

​Made of high-quality stainless steel, our exhaust pipe clamps guarantee:

  • High temperature resistance: ideal for automotive and industrial applications.
  • High corrosion resistance: resist weather.
  • Wide range of sizes: available for pipes of different diameters.
  • Easy installation: thanks to the screw tightening mechanism.
  • Versatility: suitable for various types of exhaust pipes.


Applications

  • Fastening of automotive exhaust pipes.
  • Assembly of industrial piping.
  • Fastening of exhaust system components.


Technical features

  • Tropicalized steel.
  • Bracket and washer: DD11 steel EN10111
  • Rod: Fe 360B UNI7070 (S235JR EN10025)
  • Diameter from 32 mm to 118 mm.
  • M8/M10 UNI 5588 fixing bolt.


On request

  • Other sizes.

Brochures and documents

mar-hd-ecl.pdf

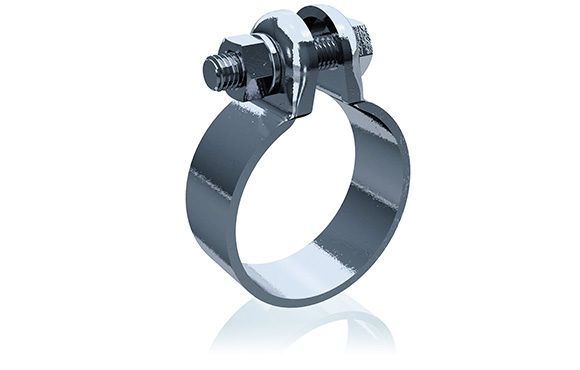

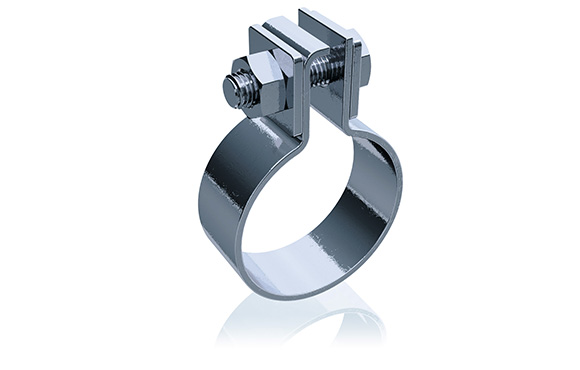

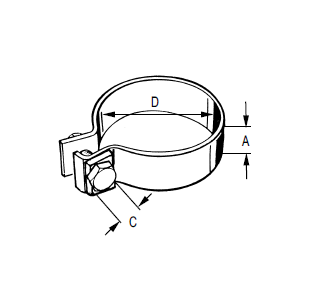

Collar clamps MAR type A

Code Diam mm Type Band Width Bolt Torque Thickness
EMR0000033 33 A 20 M8 Max 25 Nm 2
EMR0000035 36 A 20 M8 Max 25 Nm 2
EMR0000038 38 A 25 M10 Max 35 Nm 2,5
EMR0000040 40 A 20 M8 Max 25 Nm 2,5
EMR0000A43 43 A 25 M10 Max 35 Nm 2,5
EMR0000045 45 A 20 M8 Max 25 Nm 2,5
EMR0000048 47 A 20 M8 Max 20 Nm 2,5
EMR0000049 49 A 20 M8 Max 20 Nm 2,5
EMR0000050 50 A 25 M10 Max 35 Nm 2,5
EMR0000053 53 A 25 M10 Max 35 Nm 2,5
EMR0000055 55 A 25 M10 Max 35 Nm 2,5
EMR0000057 57 A 25 M10 Max 35 Nm 2,5
EMR0000060 60 A 25 M10 Max 35 Nm 2,5
EMR0000063 63 A 25 M10 Max 35 Nm 2,5
EMR0000065 65 A 25 M10 Max 35 Nm 2,5
EMR0000070 70 A 30 M10 Max 35 Nm 2,5
EMR0000073 73 A 30 M10 Max 35 Nm 2,5
EMR0000075 76 A 30 M10 Max 35 Nm 2,5
EMR0000078 78 A 30 M10 Max 35 Nm 2,5
EMR0000080 80 A 30 M10 Max 35 Nm 2,5
EMR0000083 83 A 30 M10 Max 35 Nm 2,5
EMR0000085 86 A 30 M10 Max 35 Nm 2,5
EMR0000090 89 A 30 M10 Max 35 Nm 2,5
EMR0000092 92 A 30 M10 Max 35 Nm 2,5
EMR0000098 98 A 30 M10 Max 35 Nm 2,5
EMR0000100 100 A 30 M10 Max 35 Nm 2,5
EMR0000103 103 A 30 M10 Max 35 Nm 2,5
EMR0000105 106 A 30 M10 Max 35 Nm 2,5
EMR0000108 108 A 30 M10 Max 35 Nm 2,5
EMR0000114 114 A 30 M10 Max 35 Nm 2,5
EMR0000116 116 A 30 M10 Max 35 Nm 2,5
EMR0000129 129 A 30 M10 Max 35 Nm 2,5
EMR0000150 150 A 30 M10 Max 35 Nm 2,5

​

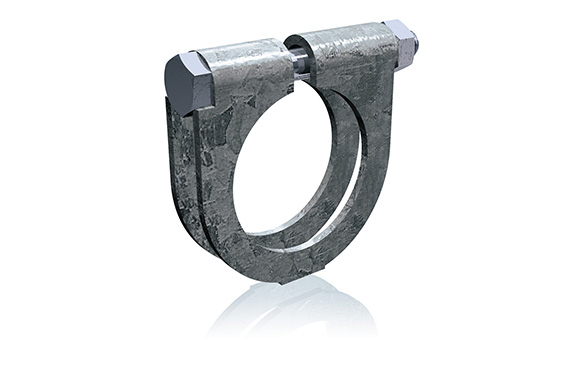

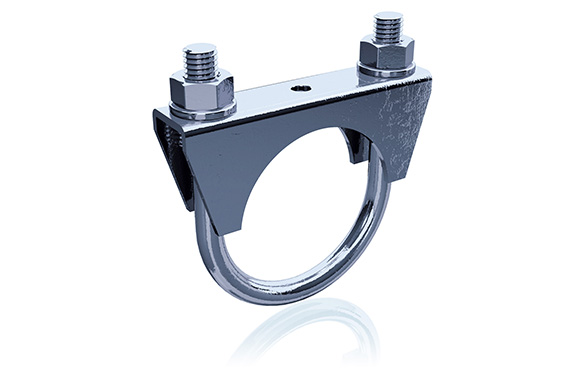

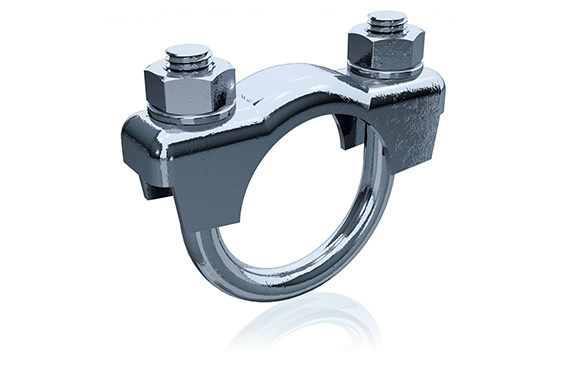

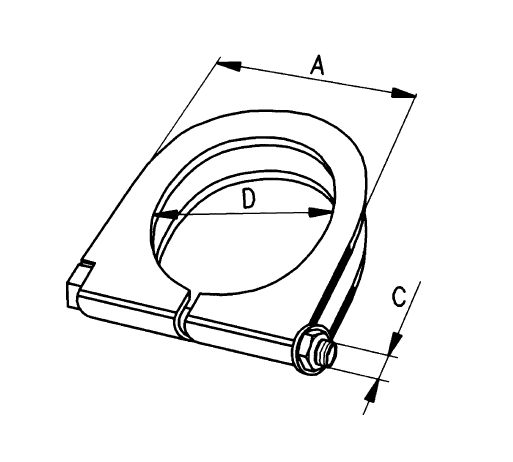

U-bolt clamps MAR type B and collar clamps type C

Code Diam mm Type A Bolt Torque
EMR0000B32 32 B 7 M8 Max 15 Nm
EMR0000B35 35 B 7 M8 Max 15 Nm
EMR0000B38 38 B 7 M8 Max 15 Nm
EMR0000B40 40 B 7 M8 Max 15 Nm
EMR0000B41 41 B 7 M8 Max 15 Nm
EMR0000B42 42 B 7 M8 Max 15 Nm
EMR0000043 43 B 7 M8 Max 15 Nm
EMR0000L43 (long) 43 B 7 M8 Max 15 Nm
EMR0000B45 45 B 7 M8 Max 15 Nm
EMR0000B46 46 B 7 M8 Max 15 Nm
EMR0000B48 48 B 7 M8 Max 15 Nm
EMR0000051 51 B 7 M8 Max 15 Nm
EMR0000B53 53 B 7 M8 Max 15 Nm
EMR0000B54 54 B 7 M8 Max 15 Nm
EMR0000B57 57 B 7 M8 Max 15 Nm
EMR0000B59 59 B 7 M8 Max 15 Nm
EMR0000B60 60 B 9 M10 Max 30 Nm
EMR0000B63 63 B 9 M10 Max 30 Nm
EMR0000066 66 B 9 M10 Max 30 Nm
EMR0000B69 69 B 9 M10 Max 30 Nm
EMR0000B72 72 B 9 M10 Max 30 Nm
EMR0000B76 76 B 9 M10 Max 30 Nm
EMR0000B80 80 B 9 M10 Max 30 Nm
EMR0000B86 86 B 9 M10 Max 30 Nm
EMR0000B89 89 B 9 M10 Max 30 Nm
EMR0000B92 92 B 9 M10 Max 30 Nm
EMR0000B98 98 B 9 M10 Max 30 Nm
EMR000B106 106 B 9 M10 Max 30 Nm
EMR000B110 110 B 9 M10 Max 30 Nm
EMR000B118 118 B 9 M10 Max 30 Nm
EMR000B125 125 B 9 M10 Max 30 Nm
EMR0000C38 38 C 55 M8 Max 20 Nm
EMR0000C41 41 C 61 M8 Max 20 Nm
EMR0000C42 42 C 61 M8 Max 20 Nm
EMR0000C43 43 C 61 M8 Max 20 Nm
EMR0000C44 44 C 62 M8 Max 20 Nm
EMR0000C45 45 C 63 M8 Max 20 Nm
EMR0000C47 47 C 65 M8 Max 20 Nm
EMR0000C49 49 C 68 M8 Max 20 Nm
EMR0000C52 52 C 72 M8 Max 20 Nm
EMR0000054 54 C 74 M8 Max 20 Nm

​

The contents of the site are published periodically and/or daily. The technical characteristics are indicative and may be subject to change.
