RSGU Rubber clamps

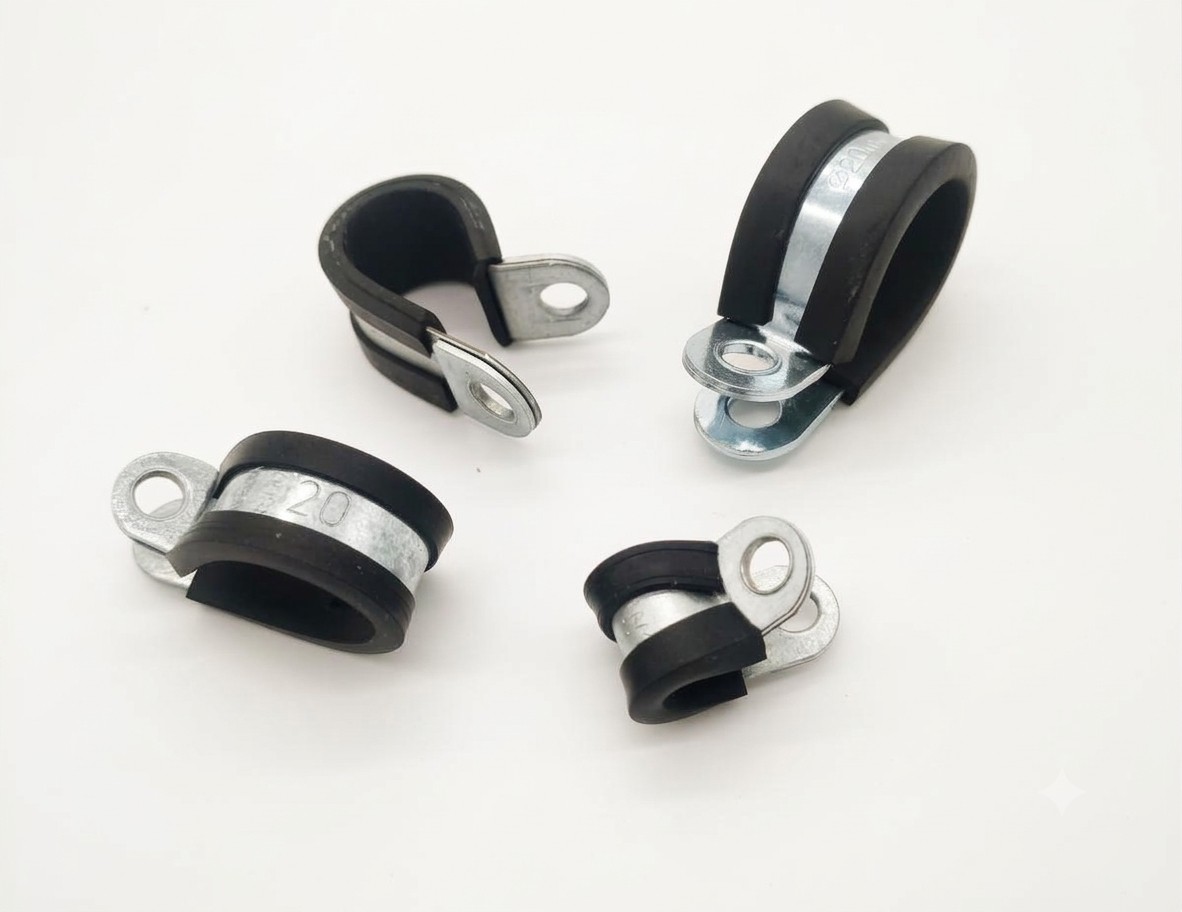

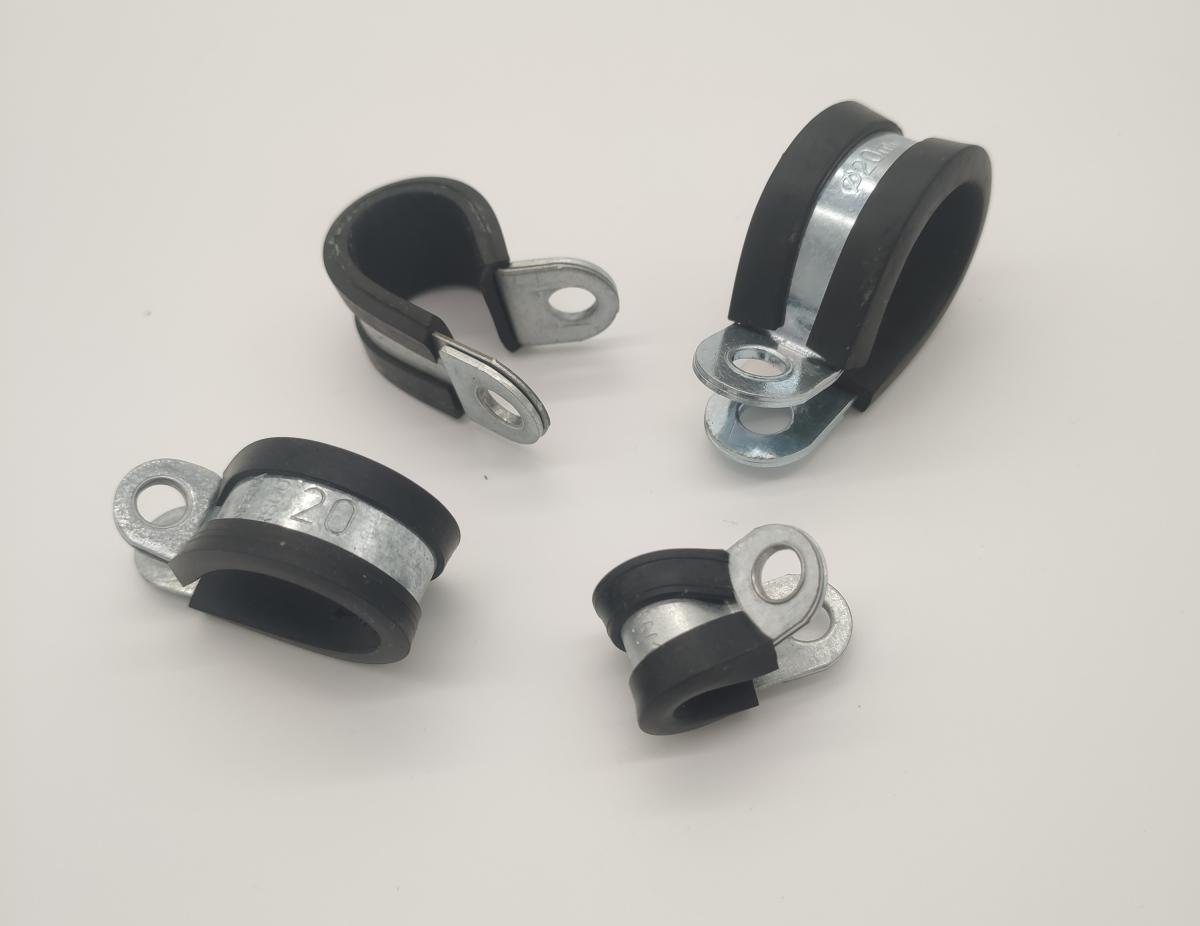

RSGU Rubber clamps

Reinforcement band and strip in shaped galvanized steel coated with anti-vibration rubber to ensure optimal protection of the cables/ pipes contained in the cable glands with the absorption of any vibrations.
Manufactured according to DIN3016.


Applications

  • Industry in general, Agriculture machine, Marine, Automotive


Technical features

  • Galvanized steel W1, chromium VI free (EU RoHS directive)
    Band width 12/15/20/25 mm
    Hole attack 5,3 / 6,4 / 8,3 / 10,5 mm
    Bolt M5/M6/M8/M10
  • EPDM rubber (coating)
    Hardness - Shore: 70 ± 5 Shore A.
    Breaking load: 50 kg/cm².
    Tear resistance: 14 kg/cm².
    Elongation: 200%.
    Operating temperature: -40°C to +120°C.
    Self-extinguishing: UL94 V-0.

  • Chemical resistance
    Ozone and UV: very good.
    Acids and bases: very good.
    Alcohol: very good.
    Mineral oils: good.
    Polygycols: very good.
    Hydrocarbons: sufficient.

On request

  • Stainless steel Aisi 304

Brochures and documents

rsgu.pdf

RSGU - Rubber clamps

Diameter mm Code band 12 mm, holes 5,3 - 5MA Code band 15 mm, holes 6,4 - 6MA Code band 20 mm, holes 8,3 - 8MA Code band 25 mm, holes 10,5 10MA Box pcs
6 RSGU 12006 W1 E KK RSGU 15006 W1 E KK - - 100
7 RSGU 12007 W1 E KK RSGU 15007 W1 E KK - - 100
8 RSGU 12008 W1 E KK RSGU 15008 W1 E KK - - 100
9 RSGU 12009 W1 E KK RSGU 15009 W1 E KK - - 100
10 RSGU 12010 W1 E KK RSGU 15010 W1 E KK - - 100
11 RSGU 12011 W1 E KK RSGU 15011 W1 E KK RSGU 20011 W1 E KK RSGU 25011 W1 E KK 100
12 RSGU 12012 W1 E KK RSGU 15012 W1 E KK RSGU 20012 W1 E KK RSGU 25012 W1 E KK 100
13 RSGU 12013 W1 E KK RSGU 15013 W1 E KK RSGU 20013 W1 E KK RSGU 25013 W1 E KK 100
14 RSGU 12014 W1 E KK RSGU 15014 W1 E KK RSGU 20014 W1 E KK RSGU 25014 W1 E KK 100
15 RSGU 12015 W1 E KK RSGU 15015 W1 E KK RSGU 20015 W1 E KK RSGU 25015 W1 E KK 100
16 RSGU 12016 W1 E KK RSGU 15016 W1 E KK RSGU 20016 W1 E KK RSGU 25016 W1 E KK 100
17 RSGU 12017 W1 E KK RSGU 15017 W1 E KK RSGU 20017 W1 E KK RSGU 25017 W1 E KK 100
18 RSGU 12018 W1 E KK RSGU 15018 W1 E KK RSGU 20018 W1 E KK RSGU 25018 W1 E KK 100
19 RSGU 12019 W1 E KK RSGU 15019 W1 E KK RSGU 20019 W1 E KK RSGU 25019 W1 E KK 100
20 RSGU 12020 W1 E KK RSGU 15020 W1 E KK RSGU 20020 W1 E KK RSGU 25020 W1 E KK 100
21 RSGU 12021 W1 E KK RSGU 15021 W1 E KK RSGU 20021 W1 E KK RSGU 25021 W1 E KK 100
22 RSGU 12022 W1 E KK RSGU 15022 W1 E KK RSGU 20022 W1 E KK RSGU 25022 W1 E KK 100
23 RSGU 12023 W1 E KK RSGU 15023 W1 E KK RSGU 20023 W1 E KK RSGU 25023 W1 E KK 100
24 RSGU 12024 W1 E KK RSGU 15024 W1 E KK RSGU 20024 W1 E KK RSGU 25024 W1 E KK 100
25 RSGU 12025 W1 E KK RSGU 15025 W1 E KK RSGU 20025 W1 E KK RSGU 25025 W1 E KK 100
26 RSGU 12026 W1 E KK RSGU 15026 W1 E KK RSGU 20026 W1 E KK RSGU 25026 W1 E KK 100
27 RSGU 12027 W1 E KK RSGU 15027 W1 E KK RSGU 20027 W1 E KK RSGU 25027 W1 E KK 100
28 RSGU 12028 W1 E KK RSGU 15028 W1 E KK RSGU 20028 W1 E KK RSGU 25028 W1 E KK 100
29 RSGU 12029 W1 E KK RSGU 15029 W1 E KK RSGU 20029 W1 E KK RSGU 25029 W1 E KK 100
30 RSGU 12030 W1 E KK RSGU 15030 W1 E KK RSGU 20030 W1 E KK RSGU 25030 W1 E KK 100
32 RSGU 12032 W1 E KK RSGU 15032 W1 E KK RSGU 20032 W1 E KK RSGU 25032 W1 E KK 100
34 RSGU 12034 W1 E KK RSGU 15034 W1 E KK RSGU 20034 W1 E KK RSGU 25034 W1 E KK 100
35 RSGU 12035 W1 E KK RSGU 15035 W1 E KK RSGU 20035 W1 E KK RSGU 25035 W1 E KK 100
38 RSGU 12038 W1 E KK RSGU 15038 W1 E KK RSGU 20038 W1 E KK RSGU 25038 W1 E KK 100
40 RSGU 12040 W1 E KK RSGU 15040 W1 E KK RSGU 20040 W1 E KK RSGU 25040 W1 E KK 100
45 RSGU 12045 W1 E KK RSGU 15045 W1 E KK RSGU 20045 W1 E KK RSGU 25045 W1 E KK 50
50 RSGU 12050 W1 E KK RSGU 15050 W1 E KK RSGU 20050 W1 E KK RSGU 25050 W1 E KK 50
55 RSGU 12055 W1 E KK RSGU 15055 W1 E KK RSGU 20055 W1 E KK RSGU 25055 W1 E KK 50
60 RSGU 12060 W1 E KK RSGU 15060 W1 E KK RSGU 20060 W1 E KK RSGU 25060 W1 E KK 50
65 - - RSGU 20065 W1 E KK RSGU 25065 W1 E KK 50
70 - - RSGU 20070 W1 E KK RSGU 25070 W1 E KK 50
75 - - RSGU 20075 W1 E KK RSGU 25075 W1 E KK 25
80 - - RSGU 20080 W1 E KK RSGU 25080 W1 E KK 25
85 - - RSGU 20085 W1 E KK RSGU 25085 W1 E KK 25
90 - - RSGU 20090 W1 E KK RSGU 25090 W1 E KK 25
95 - - RSGU 20095 W1 E KK RSGU 25095 W1 E KK 25
100 - - RSGU 20100 W1 E KK RSGU 25100 W1 E KK 25

​

​

The contents of the site are published periodically and/or daily. The technical characteristics are indicative and may be subject to change.
