Axial Expansion Joints for the absorption of expansion in all hot or
cold medium carrying piping systems, to facilitate assembly, to
compensate foundation settlement and ground movement, to absorb
vibrations of pumps, drive units, turbines, etc.
Expansion joints are used to compensate for thermal expansion compensation and absorb vibrations in internal combustion engine exhaust systems. Easy to assemble, they are used in demanding conditions involving high temperatures, tensile, and compressive movements.

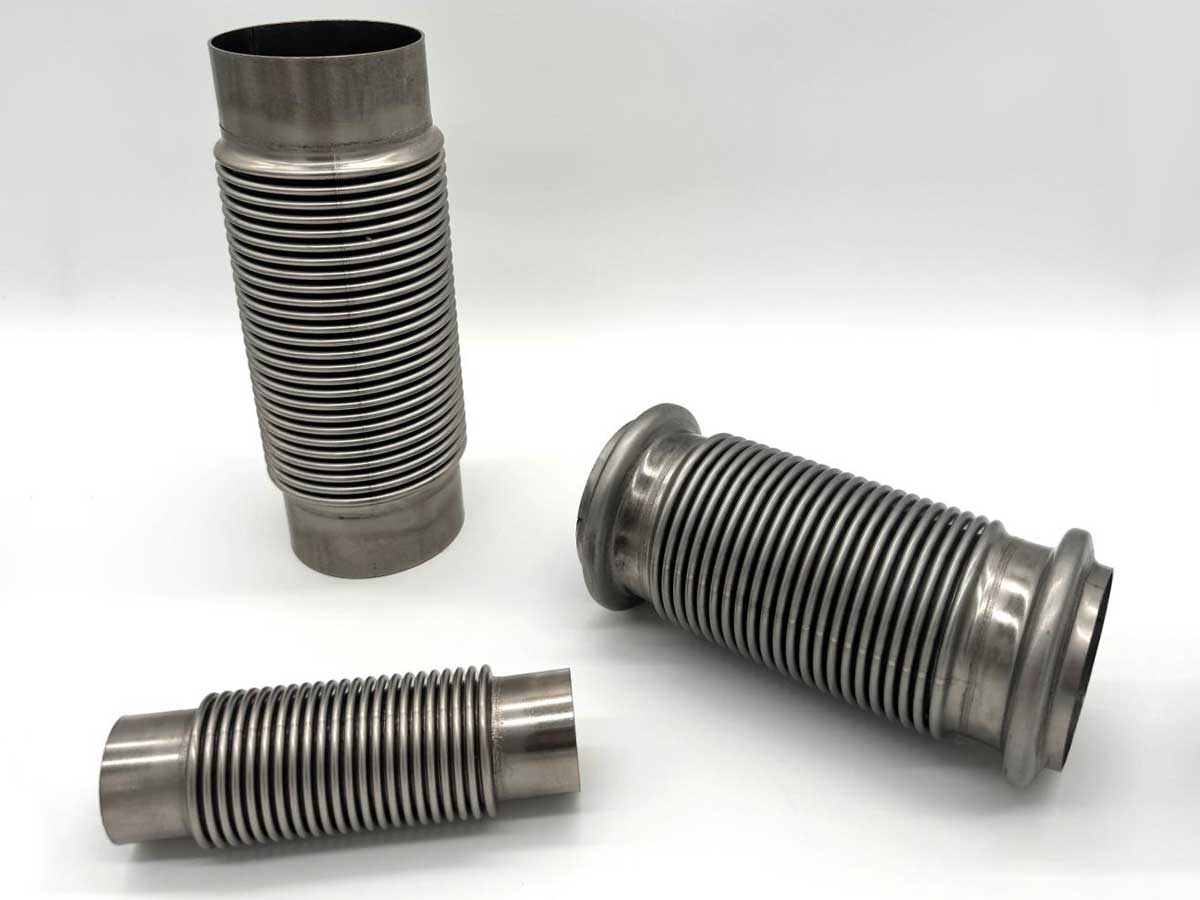

SG joints are essential components in many power transmission systems, absorbing vibrations, compensating for misalignments, and ensuring smooth and long-lasting operation. They are designed to meet diverse needs and ensure optimal performance under various operating conditions.
Key Advantages:
- Vibration Absorption.
- Misalignment Compensation.
- Noise Reduction.
- Ease of Installation and Maintenance.
Applications
- Automotive.
- Refrigeration.
- Earth moving machines.
- Gen sets, Pumps, Fans, Engines, Compressors.
- Exhaust system in general.
Technical features
- Max. working temperature: 600°C.
- Metallic bellow stainless steel: AISI 321 (thickness 0,3 mm).
- Couplers: AISI304. From DN 125: FeP04.
- Welding: on resistance; from DN 125 TIG welding.
- Nominal pressure: PN 2,5 (0,245 MPa).
On request
- With intakes.
- With flanges.
- Double metallic layer.
- With inner liner metal hose.
- On drawing/custom.
