M25-M26 Stop engine cables - pull cables

Cables and Control Systems
M25-M26 Stop engine cables - pull cables

Essential devices in many applications, from the industrial to the nautical sector; their primary function is to safely and quickly interrupt the operation of an engine or machinery. Available both with lock (M26) and without (M25).



Applications

  • Earthmoving machinery.
  • Agricultural machinery.
  • Automotive.
  • Automation.
  • Hydraulic and pneumatic systems.
  • Machine tools.
  • Robotics.
  • Nautical, steering and on-board controls.
  • Aerospace.
  • Household appliances.


Technical features

  • Galvanized steel, plastic.


On request

  • Other lenghts.
  • On drawing, with different dimensions.

Brochures and documents

M25 / M26 - Stop engine control simple

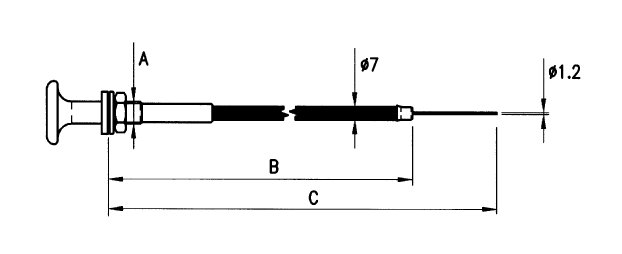

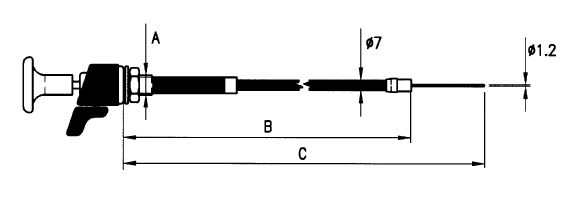

Type A B mm C mm
M25 L=1000 M12 1000 1300
M25 L=1500 M12 1500 1800
M25 L=2000 M12 2000 2300
M25 L=2500 M12 2500 2800
M25 L=3000 M12 3000 3300
M25 L=3500 M12 3500 3800
M25 L=4000 M12 4000 4300
M25 L=4500 M12 4500 4800
M25 L=5000 M12 5000 5300
M26 L=1000 M12 1000 1300
M26 L=1500 M12 1500 1800
M26 L=2000 M12 2000 2300
M26 L=2500 M12 2500 2800
M26 L=3000 M12 3000 3300
M26 L=3500 M12 3500 3800
M26 L=4000 M12 4000 4300
M26 L=4500 M12 4500 4800
M26 L=5000 M12 5000 5300
