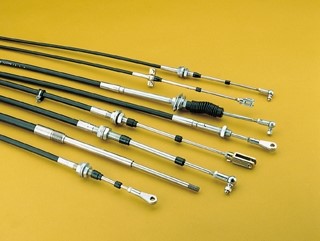

These flexible cables enable a remote “Push-Pull” operation from the slightest effort to 360 kg.
Very high efficiency and low coefficient of friction.
High resistance to corrosion, weather and mechanical influences of all the components.
For marine applications, they can be made with stainless steel end fittings.
Three-dimensional fitting up also with small bending-radius.
No maintenance or greasing required.
Series available
- 5066 (standard)
- 5083
- 6010
- 6011 (standard)
- 8013 (standard)
- 9016
Type available

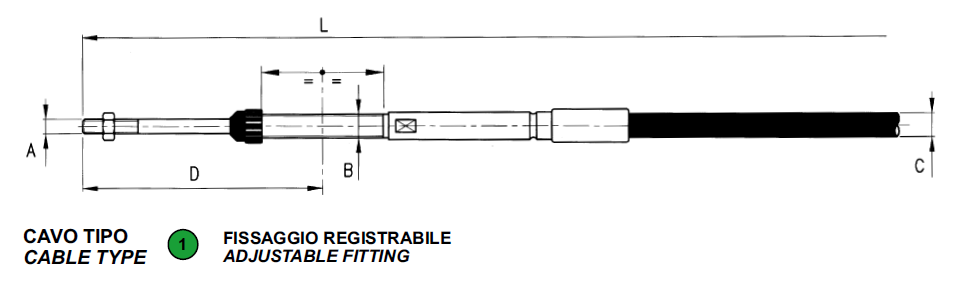

- Type 1: Adjustable fastening.

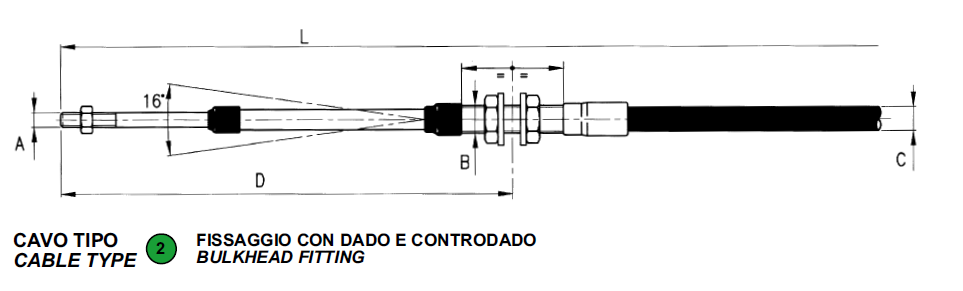

- Type 2: Articulated terminal, fixing with nut and counter nut.

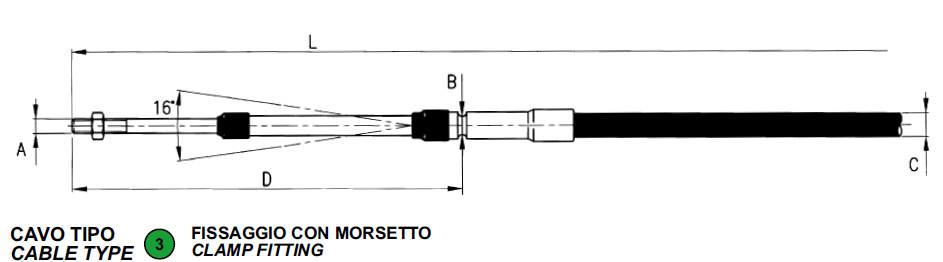

- Type 3: Jointed terminal, clamp fixing.
Applications
- Automation: Control of valves, actuators, positioning of components.
- Agricultural machinery: adjustment of Tools, opening and closing of Hoods.
- Machine tools: Operation of levers, adjustment of parameters.
- Robotics: Control of limbs and sensors.
- Nautic, steering and on-board controls.
- Aerospace.
- Home appliances.
Advantages
- Flexibility: They adapt to tight spaces and complex configurations.
- Reliability: Resistant to vibrations and harsh environments.
- Durability: High quality materials for a long service life.
- Easy installation: They do not require lubrication and are simple to assemble.
- Precision: They transmit movements with high precision.
Tecnical features
- Max. load
- Pull: 60 - 360 kg, according to the type
- Push: 28 - 230 kg, according to the type - Min. bending radius: 150 - 300 mm according to the type.
- Working temperature: -40 / +80 °C.
- Galvanized steel components.
On request
- Stainless steel components.
- Cables on drawing.
