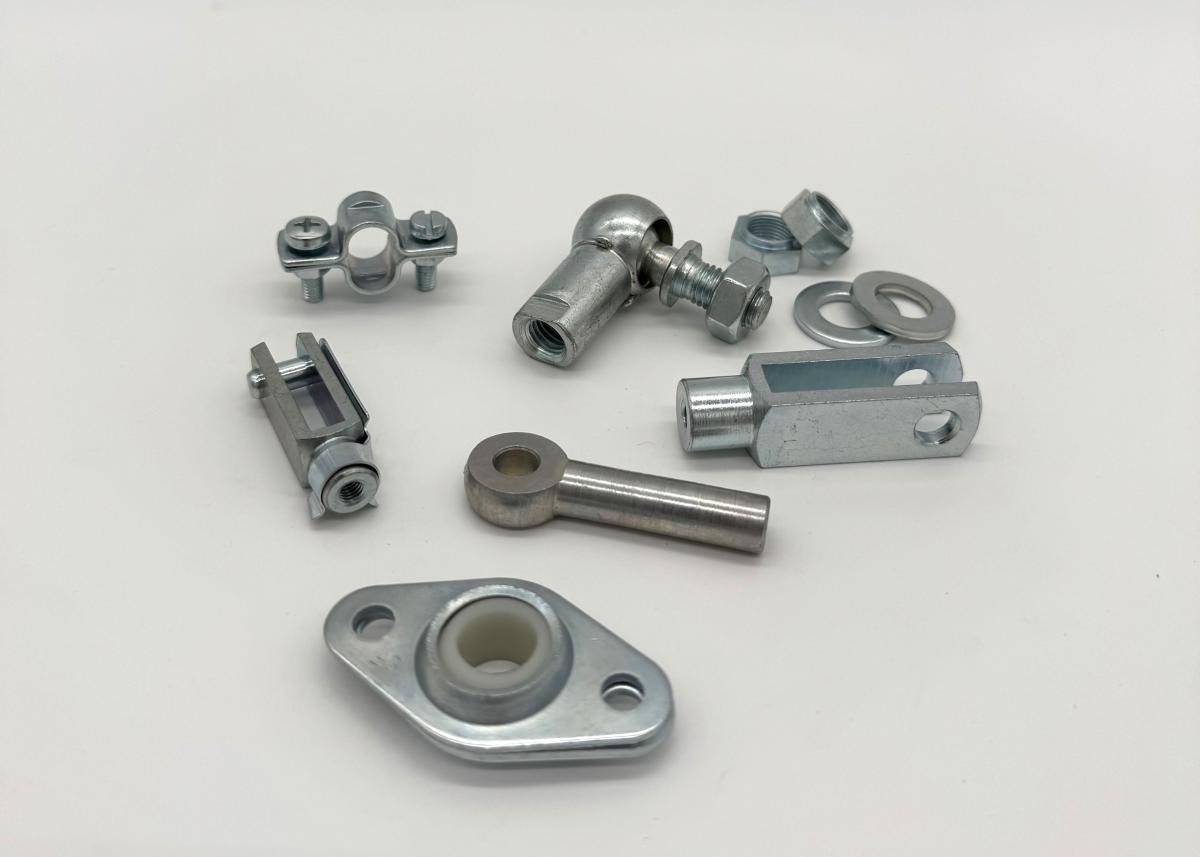

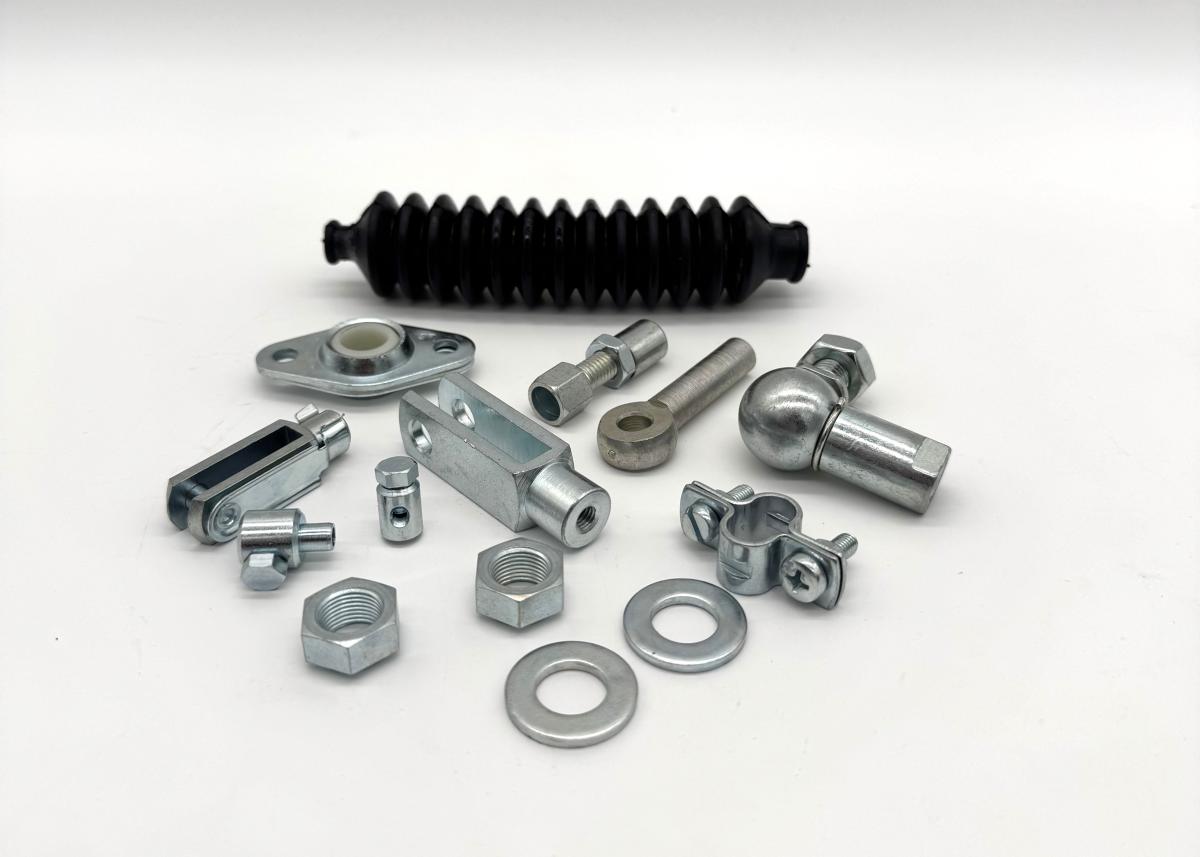

IK - SXN - AS Accessories for cables, swivel flanges, clevis, nuts, ball joints

IK - SXN - AS Accessories for cables, swivel flanges, clevis, nuts, ball joints
IK - SXN - AS Accessories for cables, swivel flanges, clevis, nuts, ball joints

​​Cable accessories are fundamental components that ensure the correct installation, protection, and management of electrical cables, both in domestic and industrial settings. Choosing the right accessories is crucial to ensure the safety, efficiency, and durability of the system over time


Applications

  • Automation: Control of valves, actuators, positioning of components
  • Agricultural machinery: Adjustment of tools, opening and closing of hoods
  • Machine tools: Operation of levers, adjustment of parameters
  • Robotics: Control of limbs and sensors
  • Nautic, steering and on-board controls
  • Aerospace
  • Home appliances


Technical features

  • Galvanized steel


On request

  • Stainless steel
  • Machined CNC products on drawing

Brochures and documents

accessori-cavi.pdf


Accessories for cable

Type A mm B mm C mm D E mm F mm G mm L mm For cable type
Forcelle / Clevis
5SXN 12 6 6 M5 10 36 24 43 5066 , 5083
6SXN-C 12 6 6 M6 10 24 12 31 6010 , 6011
6SXN 12 6 6 M6 10 36 24 43 6010 , 6011
IK1/SXN 16 8 8 M6 14 48 32 58 6010 , 6011
8SXN-C 8SXN 16 8 8 M8 14 32 16 42 8013
8SXN 16 8 8 M8 14 48 32 58 8013
10SXN-C 10SXN 20 10 10 M10 18 40 20 52 9016
10SXN 20 10 10 M10 18 60 40 72 9016
12SXN-C 12SXN 24 12 12 M12 20 48 24 62
12SXN 24 12 12 M12 20 72 48 86
14SXN 27 14 14 M14 24 56 28 72
16SXN 32 16 16 M16 26 64 32 83

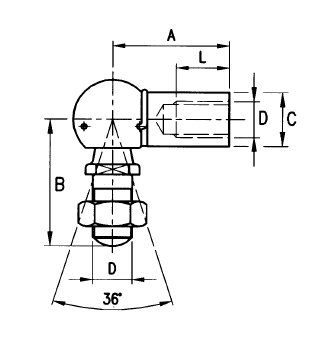

Art. rotula / Ball Joints
AS5 22 19 8 M5 - - - 10 5066 , 5083
AS6 25 23,5 10 M6 - - - 11,5 6010 , 6011
AS8 30 29,5 13 M8 - - - 14 8013
AS10 35 36 16 M10 - - - 15,5 9016
AS14 45 47 22 M14 - - - 21,5
Snodo a Flangia / Swivel flange
IK13 30 22 5,5 - - - - - 5066/1 , 5083/1
IK3 40 30 6,2 - - - - - 6010/1 , 6011/1
IK3/16 52 35 8,2 - - - - - 8013/1
IK3/18 56 39 8,2 - - - - - 9016/1
Dadi e rondelle / nuts and washers
IK14 M10x1 16 6 - - - - - 5066/1 , 5083/1
IK4 M12x1 25 10 - - - - - 6010/1 , 6011/1
IK4/14 M14x1,5 25 10 - - - - - 6010/2 , 6011/2
IK4/16 M16x1,5 25 10 - - - - - 8013/1 , 8013/2
IK4/18 M18x1 25 10 - - - - - 9016/1
IK4/20 M20x1,5 30 12 - - - - - 9016/2
Fascette / Clamps
L 14 25,4 M5 - - - - - - 5066/3 , 5083/3
L 15 25,4 M6 - - - - - - 6010/3 , 6011/3
L 16 31,8 M6 - - - - - - 8013/3

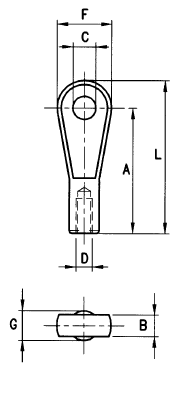

Occhiello / Terminal eye
IK2 46 8 8,5 M6 - 20 11 56 6010 , 6011
IK2/8 46 8 8,5 M8 - 20 11 56 8013
Soffietto / Bellow
IK6 13 13 115 6010 , 6011

​

​

The contents of the site are published periodically and/or daily. The technical characteristics are indicative and may be subject to change.
