100-200-300 Silenced and super-silenced standard mufflers

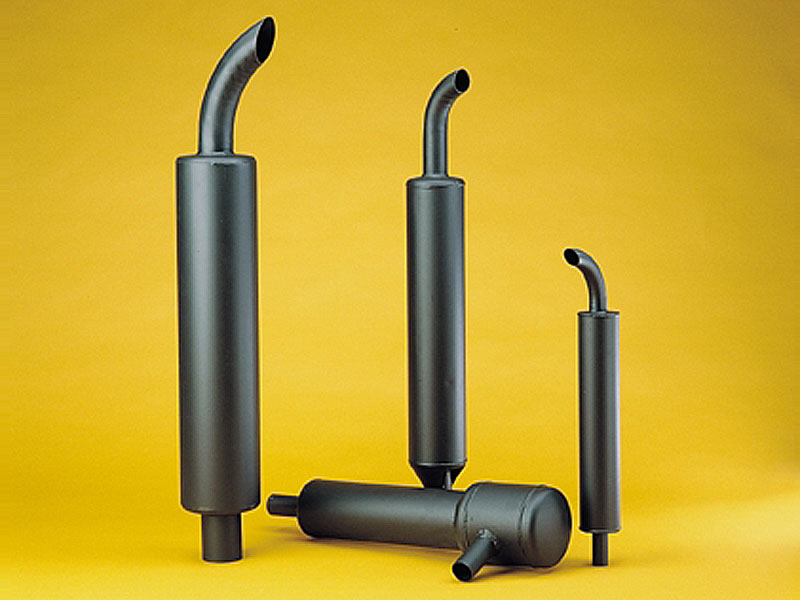

100-200-300 Silenced and super-silenced standard mufflers

Industrial silencers are essential devices for reducing noise generated by internal combustion engines and exhaust systems in various industrial applications. We offer a range of standard silencers and the possibility of creating custom versions upon request and customer drawings.

  • Silenced mufflers Series 100C (15-20 dBA)

Noise reduction by absorption.
No exhaust back pressure.

  • Super-silenced mufflers Series 200S-ST e 300S-ST (30-40 dBA)

Noise reduction by absorption and resonance.
Little exhaust back pressure.

Applications

  • generator sets
  • earth moving machines
  • agricultural, industrial and marine machines.

Technical features

  • Material: steel S235JR (St.37.2)
  • Surface treatment: black paint RAAL9005, high temperature 600°C
  • Deadening material: fiber glass type E - heat resistance 750°C.

Muffler choice

  • 4 stroke engine: see table
  • Turbo-charged engine: power on table (hp) x 1,4
  • 2 stroke engine: power on table (hp)  x 2

On request

  • stainless steel, with safety net, custom made on drawing/request

Brochures and documents

marmitte.pdf




100C - Silenced mufflers

Type Engine power A mm B mm C mm D mm F mm G mm
80 C 5 - 15 Hp 80 250 70 28 35 120
80 CL 5 - 15 Hp 80 430 70 28 35 120
100 C1M 8 - 30 Hp 100 250 100 40 40 170
100 C1 30 - 60 Hp 100 450 150 46 40 170
100 C1R 30 - 60 Hp 100 450 150 46 40 170
100 C1H 30 - 60 Hp 100 450 150 60,5 60 170
100 C2M 60 - 80 Hp 120 400 150 54 50 190
100 C2 60 - 80 Hp 120 600 150 54 50 190
100 C2 EBH 60 - 80 Hp 120 600 200 45 50 225
100 C2R 60 - 80 Hp 120 600 150 54 50 190
100 C3M 80 - 120 Hp 160 500 100 76 70 230
100 C3 80 - 120 Hp 160 700 100 76 70 230
100 C4 120 - 180 Hp 200 1000 100 86 90 -
100 C5 180 - 250 Hp 215 1100 100 102,5 108 -
100 C6 250 - 320 Hp 280 1200 100 127,5 133 -
100 C7 320 - 400 Hp 350 1200 100 152,5 159 -
100 C8 400 - 500 Hp 400 1400 100 197 202 -
100 C9 500 - 800 Hp 600 1600 100 245 250 -

​


Super-silenced mufflers series 200 and 300

Type Engine power A mm B mm C mm D mm F mm G mm L mm M mm
200 S8 15 - 30 HP 120 400 100 40 44 120 - -
200 ST8 15 - 30 HP 120 400 100 40 44 120 - -
200 S1 30 - 60 HP 160 600 100 46 50 150 - -
200 ST1 30 - 60 HP 160 600 100 46 50 150 - -
200 S2 60 - 80 HP 200 800 100 54 60 200 - -
200 ST2 60 - 80 HP 200 800 100 54 60 200 - -
200 S3 80 - 120 HP 250 1000 100 76 80 200 - -
200 ST3 80 - 120 HP 250 1000 100 76 80 200 - -
200 S4 120 - 180 HP 280 1200 100 86 90 250 - -
200 ST4 120 - 180 HP 280 1200 100 86 90 250 - -
200 S5 180 - 250 HP 350 1400 100 102,5 108 300 - -
200 ST5 180 - 250 HP 350 1400 100 102,5 108 300 - -
200 S6 250 - 320 HP 400 1600 100 127,5 133 350 - -
200 ST6 250 - 320 HP 400 1600 100 127,5 133 350 - -
200 S7 320 - 400 HP 450 1800 100 152,5 159 350 - -
200 ST7 320 - 400 HP 450 1800 100 152,5 159 350 - -
200 S9 400 - 500 HP 600 2200 100 197 202 450 - -
200 ST9 400 - 500 HP 600 2200 100 197 202 450 - -
300 S8 15 - 30 HP 120 600 100 40 44 120 400 160
300 ST8 15 - 30 HP 120 600 100 40 44 120 400 160
300 S1 30 - 60 HP 160 800 100 46 50 150 500 200
300 ST1 30 - 60 HP 160 800 100 46 50 150 500 200
300 S2 60 - 80 HP 200 1200 100 54 60 200 800 280
300 ST2 60 - 80 HP 200 1200 100 54 60 200 800 280
300 S3 80 - 120 HP 215 1400 100 76 80 200 1000 300
300 ST3 80 - 120 HP 215 1400 100 76 80 200 1000 300
300 S4 120 - 180 HP 280 1600 100 86 90 250 1100 350
300 ST4 120 - 180 HP 280 1600 100 86 90 250 1100 350
300 S5 180 - 250 HP 300 1800 100 102,5 108 300 1200 400
300 ST5 180 - 250 HP 300 1800 100 102,5 108 300 1200 400
300 S6 250 - 320 HP 350 2000 100 127,5 133 350 1300 500
300 ST6 250 - 320 HP 350 2000 100 127,5 133 350 1300 500
300 S7 320 - 400 HP 500 2200 100 152,5 159 350 1500 600
300 ST7 320 - 400 HP 500 2200 100 152,5 159 350 1500 600

​​100 C1R and 100 C2R with safety net

The contents of the site are published periodically and/or daily. The technical characteristics are indicative and may be subject to change.
