ESB Spring clamp ESB

ESB Spring clamp ESB

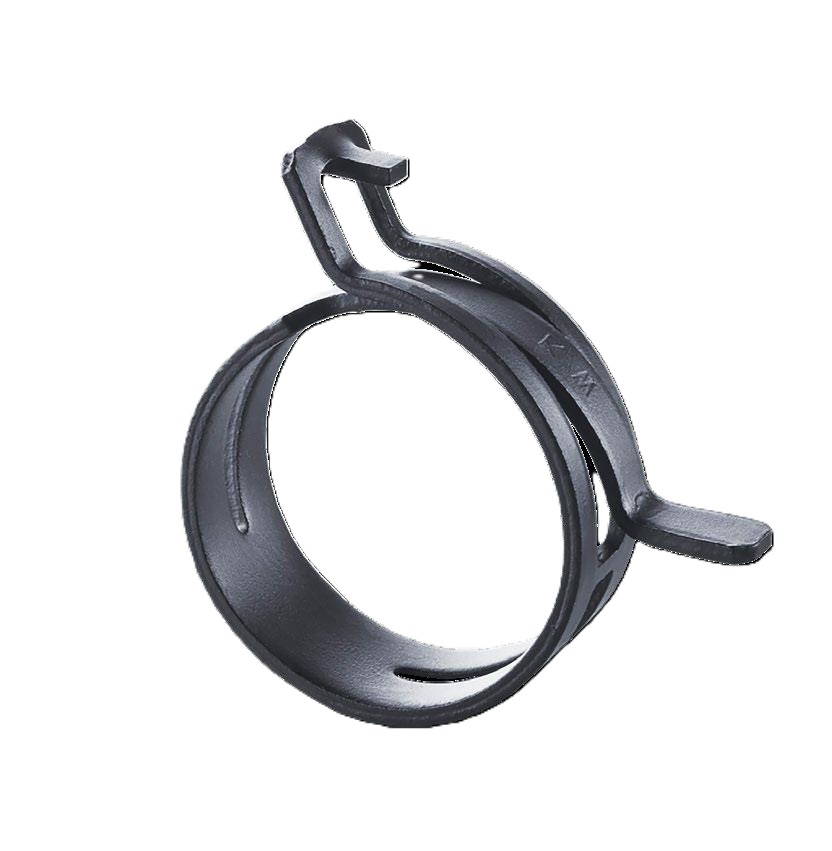

Spring clamp, recommended for applications where temperatures vary between -40°C and +120 °C.
They guarantee constancy and uniformity of the radial force, despite temperature variations.


Applications

  • Various


Technical features

  • 65Mn- white dacromet.




ESB Spring bands

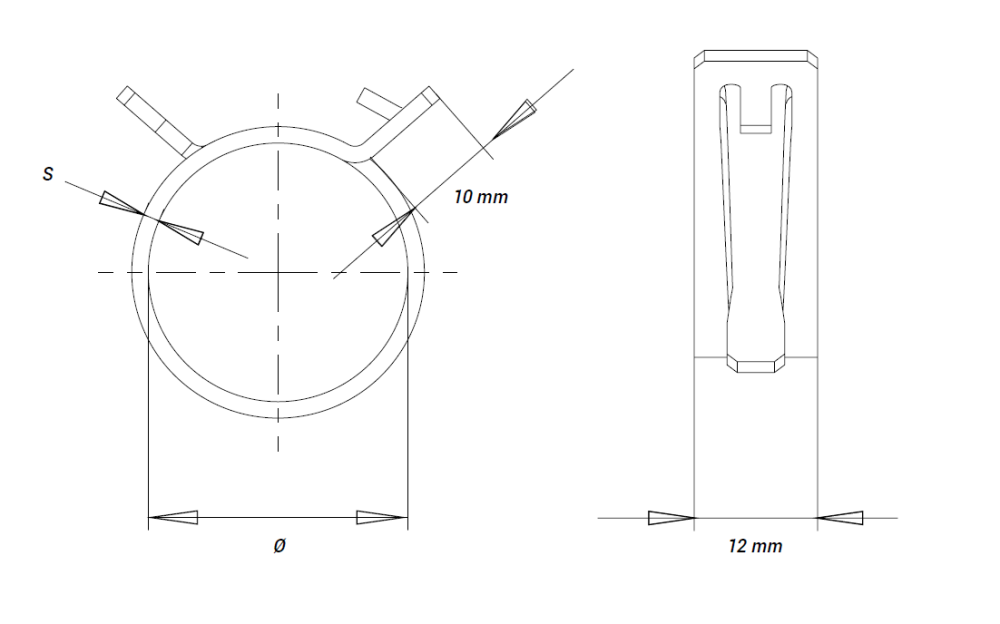

Code Nominal Diam. Mm Max. Diam. Mm Thk. Band mm Band Width mm
ESB0000013 13 14,2 0,8 12
ESB0000014 14 15,8 0,8 12
ESB0000015 15 16,5 0,8 12
ESB0000016 16 17,5 0,8 12
ESB0000017 17 18,5 0,8 12
ESB0000018 18 19,0 0,8 12
ESB0000019 19 20,2 1,3 12
ESB0000020 20 21,6 1,3 12
ESB0000021 21 22,5 1,3 12
ESB0000022 22 24,2 1,3 12
ESB0000023 23 24,7 1,3 12
ESB0000024 24 26,0 1,3 12
ESB0000025 25 26,8 1,3 12
ESB0000026 26 28,0 1,7 12
ESB0000027 27 29,2 1,7 12
ESB0000028 28 30,2 1,7 12
ESB0000029 29 31,5 1,7 12
ESB0000030 30 32,5 1,7 12
ESB0000032 32 34,5 1,7 12
ESB0000034 34 36,4 1,7 12
ESB0000036 36 39,0 1,7 12
ESB0000038 38 41,5 1,7 12
ESB0000040 40 42,5 1,7 12
ESB0000042 42 44,5 2,1 12
ESB0000046 46 48,5 2,1 12
ESB0000050 50 53,0 2,1 12
ESB0000051 51 54,0 2,1 12
ESB0000053 53 55,8 2,1 12
ESB0000060 60 64,0 2,6 12
ESB0000070 70 73,0 2,6 12
ESB0000080 80 84,0 2,6 12

​

The contents of the site are published periodically and/or daily. The technical characteristics are indicative and may be subject to change.
