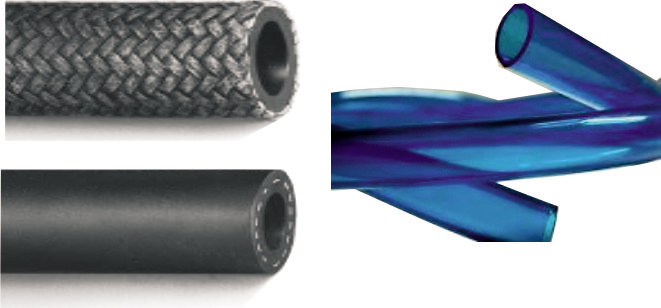

RC - RCL - RCP Rubber fuel hoses smooth, with outside textile braid and PVC

RC - RCL - RCP Rubber fuel hoses smooth, with outside textile braid and PVC

RC - RCL

For delivery of fuel in internal combustion engines for lubrification and greasing services. Particularly recommended where it is necessary flexibility and lightness.
Oils and fuel with 40% aromatic contents resistant.


  • Tube: Fuel and oil resistant, smooth nbr rubber
  • Reinforcement: High tensile synthetic textile
  • Cover: Abrasion, ozone, weather and oil resistant special synthetic rubber
  • Surface: Smooth
  • Working pressure 10 bar, bursting 30 bar
  • Temperatura -35°C / +70°C


PVC

Suitable for delivery of mineral oils, fuel, lubricant and machinery gear; particularly suitable where they are required of lightness and flexibility characteristics.

Transparent green PVC

Temperature -5°C / +60°C

Brochures and documents

RC - Fuel hoses with outside braid

Code Diameter mm W.P. Bursting Pressure Rolls
RC003007 3x7 10 bar 30 bar 20m
RC003207 3,2x7 10 bar 30 bar 20m
RC004008 4x8 10 bar 30 bar 20m
RC005010 5x10 10 bar 30 bar 20m
RC006013 6x13 10 bar 30 bar 20m
RC007014 7,5x14,5 10 bar 30 bar 20m
RC008015 8x15 10 bar 30 bar 20m
RC008017 8x17 10 bar 30 bar 20m
RC010017 10x17 10 bar 30 bar 20m
RC011019 11x19 10 bar 30 bar 20m
RC013019 13x19 10 bar 30 bar 20m

RCL - Smooth fuel hoses

Code Diameter mm W.P. Bursting Pressure Rolls
RCL03007 3x7 10 bar 30 bar 20m
RCL04009 4x9 10 bar 30 bar 20m
RCL05010 5x10 10 bar 30 bar 20m
RCL06013 6x13 10 bar 30 bar 20m
RCL07014 7,5x14,5 10 bar 30 bar 20m
RCL08015 8x15 10 bar 30 bar 20m
RCL10017 10x17 10 bar 30 bar 20m
RCL12019 12x19 10 bar 30 bar 20m
RCL13020 13x20 10 bar 30 bar 20m
RCP04007 - PVC 4x7 5 bar 15 bar 20m
RCP05009 - PVC 5x9 5 bar 15 bar 20m
RCP07012 - PVC 7x12 5 bar 15 bar 20m
RCP10017 - PVC 10x15 4 bar 12 bar 20m

The contents of the site are published periodically and/or daily. The technical characteristics are indicative and may be subject to change.
