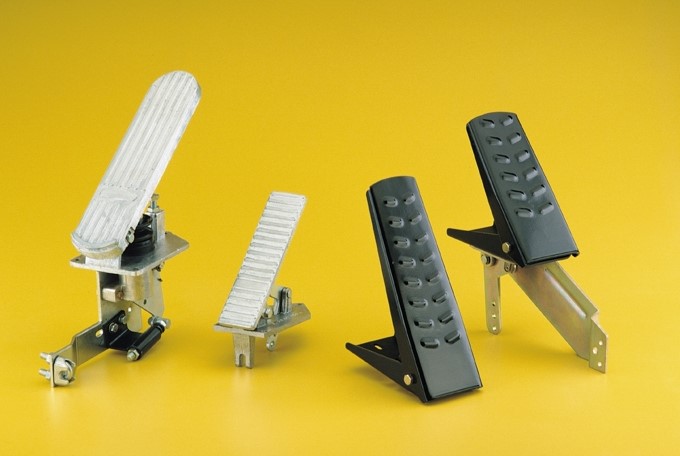

Pedali Accelerator - brake - clutch pedals

Pedali Accelerator - brake - clutch pedals

Pedals are essential components in many sectors, from industry to automotive.
Designed to withstand high loads and harsh environments

Applications

Industry
Automotive
Agriculture
Agricultural machinery, earthmoving machines
Marine, nautic

Technical features

Material: sheared and drawn sheet metal
Painted
Joints: self-lubricating nylon bushings
Stroke 65 mm
Use series cables: 5066 - 5083 - 6010 -6011

On request

special versions on request, for every particular customer need

Accelerator/Stop pedals

Type	Descrizione	Description	Travel mm	Cable type

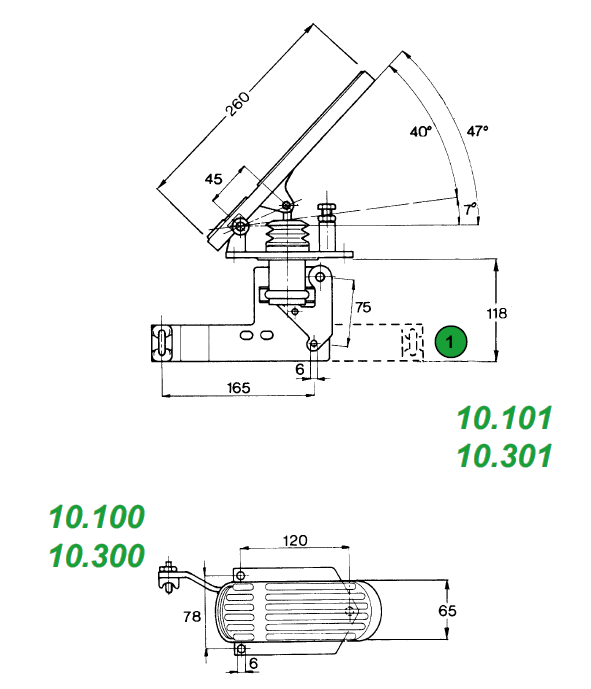

10.100	Pedale	Pedal	70	5066/3-75
10.300	Con stop motore	With engine stop	50+15	5066/3-75
10.301	Con stop motore	With engine stop	50+15	5066/3-75

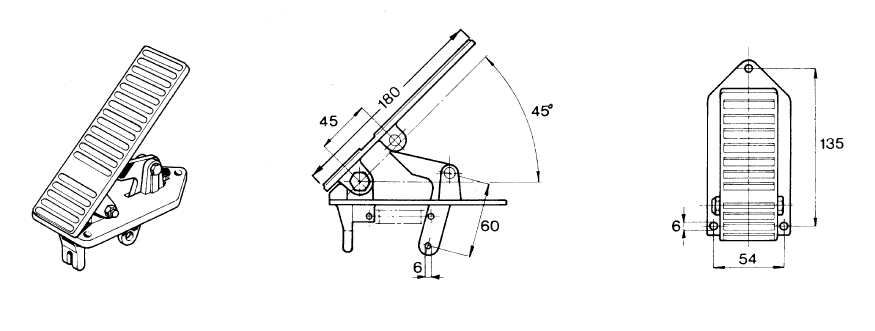

10.400	Pedale	Pedal	40	A richiesta/on request
10.700	Pedale	Pedal

Accelerator/brake/clutch pedals

Type	A	B mm	C mm	D mm	E mm	F mm	G mm	H mm	I mm	L mm	M mm	N mm	O mm	P mm	Q mm

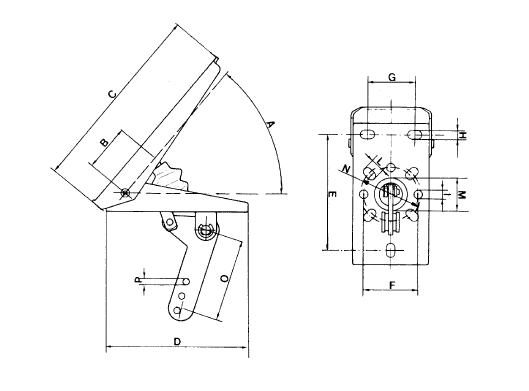

10620	50°	70	190	140	116	55	44	7	8	14	32	60	83	6	-
10630	50°	70	250	140	116	55	44	7	8	14	32	60	83	6	-

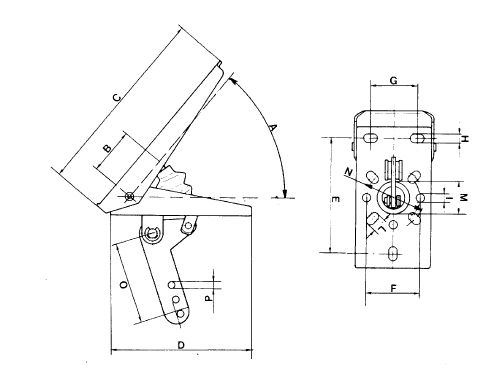

10621	50°	70	190	140	116	55	44	7	8	14	32	60	83	6	-
10631	50°	70	250	140	116	55	44	7	8	14	32	60	83	6	-

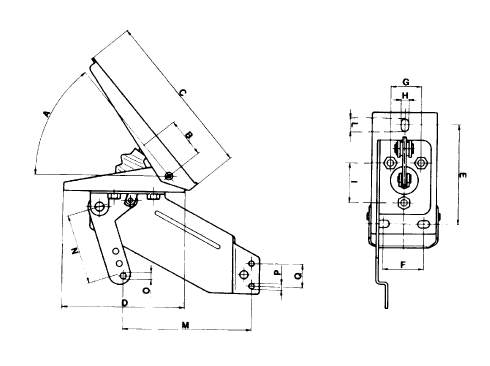

10640	50°	70	190	140	116	44	38	7	47	14	145	83	6	5	26
10650	50°	70	250	140	116	44	38	7	47	14	145	83	6	5	26

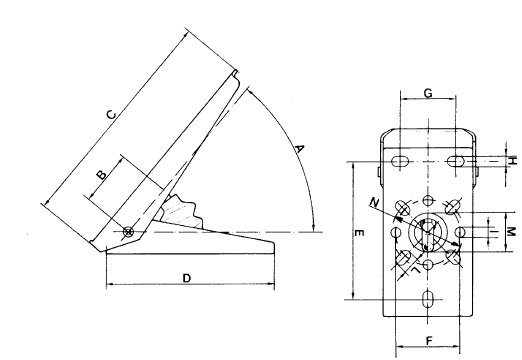

10600	50°	70	190	140	116	55	44	7	8	14	32	60	-	-
10610	50°	70	250	140	116	55	44	7	8	14	32	60

The contents of the site are published periodically and/or daily. The technical characteristics are indicative and may be subject to change.
