Thermal insulation system for exhaust system components such as catalytic converters, SCRs, DPFs and pipe collectors.

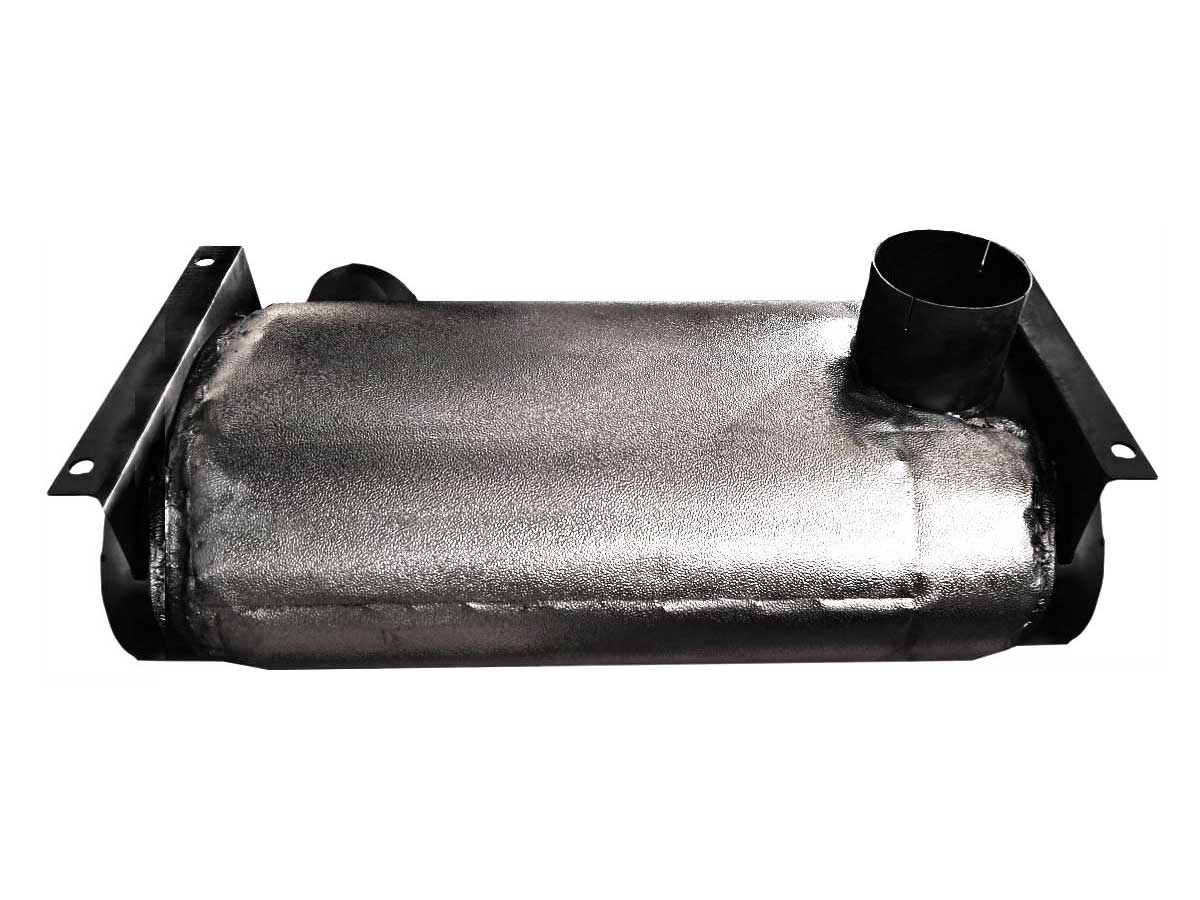

The encapsulation system involves the application of one or more layers of insulating material, depending on the functional requirements, on the component to be insulated supplied; then, the pre-formed stainless-steel shells are mounted on the previously applied insulation and welded together and on the component, forming the outer protective cover (integral encapsulation)
Applications
- Mufflers, tank
- Pipes
- Catalytic, SCR, DOC, DPF
Technical features
- Insulation material: ECR-glass stitched mat laminated with aluminium foil tk. 0,012mm
- Thermo-reflecting tape: Adhesive tape with aluminium foil backing, tk. 0,025mm
- Outer cover: Embossed stainless steel tk. 0,17-0,5mm
- Change of status: It begins to crystallize at 800°C
- Thermal stability: 750°C
- Fire behaviour: According to Standard DIN 4102, non-flammable
- Silicone and acrylic adhesive are combustible
