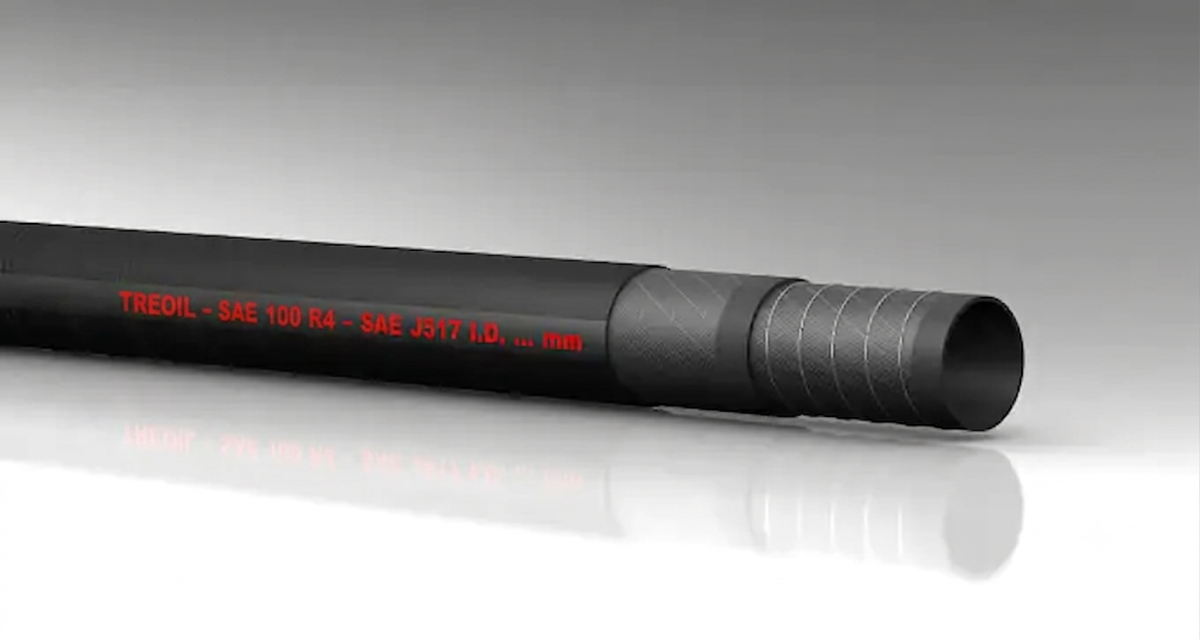

TREOIL SAE 100 R4 Hose for hydraulic oils suction and delivery

Hose TREOIL SAE100R4 (RN) is suitable for hydraulic oils suction and delivery in hydraulic plants.
Particularly used in agricultural and industrial sectors.

SAE J517 100R4 approved.


Application

  • Oleodinamic
  • Agricultural
  • Industrial


Tech features

  • Tube: Oil and petrol resistant, conductive NBR
  • Reinforcement: High tensile synthetic textile, antistatic copper wire
  • Cover: Fire, oil, weather, ozone, abrasion and diesel resistant, special synthetic neoprene rubber
  • Surface Smooth with fabric impression
  • Temperature -40°C / +100°C


On request

  • Rolls of 10 or 20 meters
  • Cut to piece lenght
  • Other diameter

Hose TREOIL SAE 100 R4

Code I.D. mm Ext.D mm WP bar Burst P.bar Vacuum Weight g/m Bend radius mm Roll lenght
RN01900000 19 29 21 84 0,8 bar 541 50 40m
RN02200000 22 32 17 68 0,8 bar 616 60 40m
RN02500000 25,4 35 17 68 0,8 bar 683 65 40m
RN02800000 28 39 17 68 0,8 bar 834 78 40m
RN03000000 30 41 17 68 0,8 bar 866 82 40m
RN03200000 32 42 14 56 0,8 bar 848 85 40m
RN03500000 35 46 14 56 0,8 bar 1021 90 40m
RN03800000 38 49 10 40 0,8 bar 1202 95 40m
RN04000000 40 52 10 40 0,8 bar 1256 100 40m
RN04200000 42 54 10 40 0,8 bar 1455 110 40m
RN04500000 45 57 10 40 0,8 bar 1555 110 40m
RN04800000 48 60 7 28 0,8 bar 1565 120 40m
RN05100000 50,8 62 7 28 0,8 bar 1525 135 40m
RN06000000 60 72 4 16 0,8 bar 2009 175 40m
RN06300000 63,5 75,5 4 16 0,8 bar 2277 180 40m
RN07000000 70 84 4 16 0,8 bar 2725 240 40m
RN07600000 76,2 88 4 16 0,8 bar 2618 225 40m
RN08000000 80 94 4 16 0,8 bar 2950 240 20m
RN09000000 90 103 3 12 0,8 bar 3291 270 20-40m
RN10200000 101,6 115 2 8 0,8 bar 3775 400 20-40m
