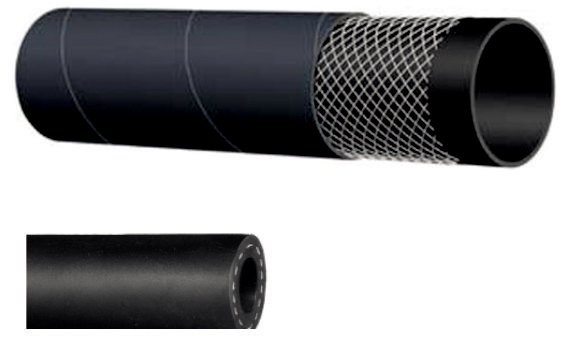

RR Radiator heating water and air hoses

For delivery of hot water with light chemical content in industrial applications.
Suitable for the flowing of hot water and anti-freeze liquid

Particularly used like connection on motors cooling systems, ideal for the automotive sector and for industrial vehicles.

RR in barre L=1000mm

Material: EPDM with high tensile synthetic textile, cover black EPDM smooth cloth impression ageing and weather resistant
Working pressure 4 bar
Bursting pressure 12 bar
Working temperature -40°C ÷ +125°C

RR in rolls 10/20/50/100 meters (standard 20 meters)

Material: EPDM rubber with high tensile synthetic textile, smooth cover abrasion, heat, ozone and weather resistant
Working pressure 10 bar
Bursting pressure 30 bar
Working temperature -40°C ÷ +125°C

Code	Diameter mm	Type	W.P.	Bursting Pressure
RR006014 SBR	6x14	1	20 bar	60 bar
RR008015	8x15	1	10 bar	30 bar
RR010017	10x17	1	10 bar	30 bar
RR012019	12x17	1	10 bar	30 bar
RR013019	13x19	1	10 bar	30 bar
RR014021	14x21	1	10 bar	30 bar
RR015021	15x21	1	10 bar	30 bar
RR016024	16x23	1	10 bar	30 bar
RR018026	18x25	1	10 bar	30 bar
RR019027	19x26	1	10 bar	30 bar

Code	I.D. mm	E.D. mm	W.P. (bar)
RR022000	22	28	3,5
RR025000	25	32	3,5
RR028000	28	36	3,5
RR030000	30	38	3,5
RR032000	32	40	3,5
RR035000	35	43	3,5
RR038000	38	47	3,5
RR040000	40	49	3,5
RR042000	42	51	3,5
RR045000	45	54	3,5
RR048000	48	57	3,5
RR050000	50	60	3,5
RR055000	55	65	3,5
RR060000	60	71	3,5
RR065000	65	76	3,5
RR070000	70	81	3,5
RR075000	75	86	3,5
RR080000	80	91	3,5
RR090000	90	102	3,5
RR100000	100	113	3,5
